PCBA Testing Service: The Gatekeeper of Electronic Product Quality

PCBA testing service are a crucial step in ensuring the quality of core components. They serve as a solid defense line for the quality of electronic products,

insureing PCBA their stable operation in complex application scenarios.

PCBA testing service , as the core component of electronic products,

its quality directly affects the performance, stability and service life of the products.

Therefore, conducting relevant tests before the products are shipped out is something we,

as a manufacturing factory, feel most confident and willing to do.

The Significance of PCBA Testing Services

With the development of market demand, the design and manufacturing of PCBA have become increasingly complex. Under such circumstances, even minor defects or malfunctions may lead to serious consequences.

This requires PCBA testing services to conduct comprehensive and meticulous inspections,

so as to accurately identify potential problems and provide a strong guarantee for product quality.

Various and Diverse Types of PCBA Testing

1.Electrical performance test

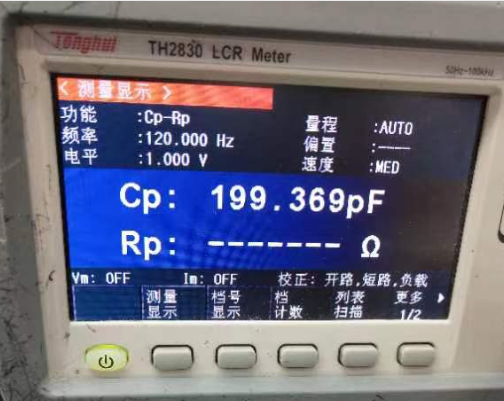

Electrical performance testing is the foundation of PCBA testing. It mainly examines the electrical connection status of the PCBA and whether all electrical parameters meet the design requirements. Among them, it includes continuity testing, impedance testing, as well as tests for voltage, current, power, and other parameters. These parameters are the key indicators for determining whether the device can operate normally.

2.functional test

Functional pcba testing involves simulating various scenarios in which a PCBA would operate in real life, indeed to comprehensively verifying all its functions.

Test personnel, based on the product’s functional specification document,

use specialized test fixtures and test software to input various signals into the PCBA,

and then check whether the output signals are consistent with expectations. For example, for a mobile phone motherboard, functional testing would cover various functions ,

such as calling, messaging, internet access, and photography, ensuring that the motherboard can operate normally in different functional modes and providing a guarantee for the overall performance of the mobile phone.

3.reliability testing

Reliability testing involves simulating the harsh environmental conditions that a product might encounter during actual use, such as high temperatures, low temperatures, high humidity, mechanical vibration, and shock. This helps to expose potential quality issues in advance. For instance, the temperature cycling test will repeatedly cycle the PCBA between high and low temperatures to assess its reliability under thermal expansion and contraction stress; the humidity test will place the PCBA in a high-humidity environment to examine its ability to resist moisture, preventing short circuits, corrosion and other problems caused by moisture, and testing the structural strength and solder joint reliability of the PCBA.

4.X-ray inspection

X-ray inspection utilizes X-rays to penetrate the PCBA, enabling non-destructive testing of the internal solder joints, components and circuits. so it can accurately determines whether there are any quality issues, providing a basis for timely repair and improvement.

5.Automatic Optical Inspection (AOI)

AOI is an automated inspection technology based on optical principles. It uses high-resolution cameras to take pictures of PCBA, automatically identifying various defects on the PCBA, such as the absence of components, misalignment, polarity errors, as well as bridging, insufficient tin, and excessive tin at solder joints. AOI has the advantages of fast detection speed, high accuracy, and good repeatability, which can significantly improve the inspection efficiency and reduce the subjectivity and missed detection rate of manual inspection. It is widely used in online inspections on PCBA production lines.

PCBA testing services play a crucial role in modern electronic manufacturing. With a wide range of testing types, strict testing standards and procedures, as well as the high-quality services provided by professional testing service providers, if you have any needs, pls feel free to contact us.
