PCB assembly equipment in Suga

PCB Assembly equipment in Suga:the core engine of electronic manufacturing

PCB Assembly equipment in Suga is the core engine to make PCBA,and its also are lifeline of modern electronic product manufacturing.they can thransfer the Bare PCB to a  fully functional circuit system.It supports all kinds of smart devices ranging from mobile phones to cars.

The entire PCBA process relies on the highly automated equipment to work

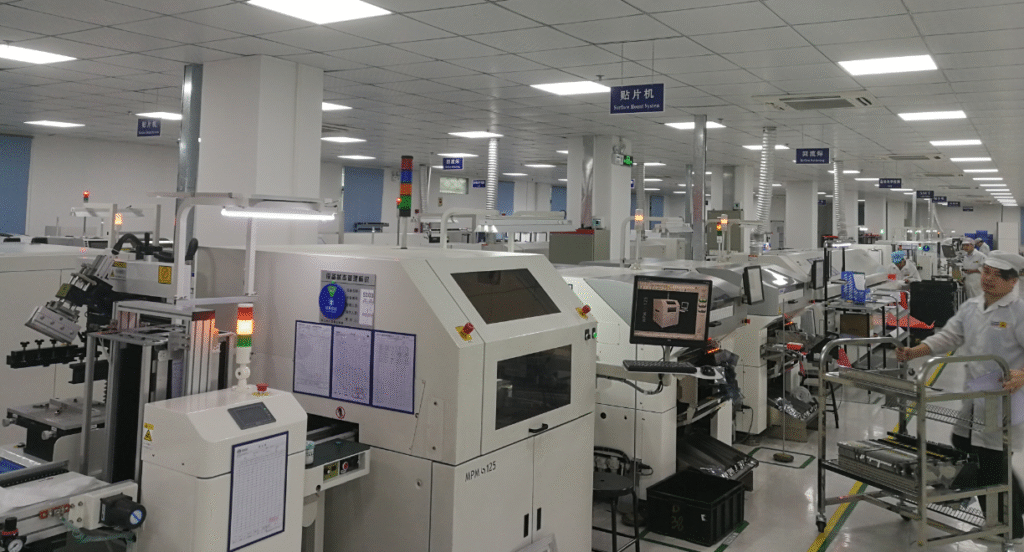

Firstly:PCB assembly equipment in Suga for SMT

We have 15 SMT lines in QingXi Factory,the main brand for SMT Assembly equipment in Suga are Fuji and Yamaha.

The working principle of SMT equipment:The solder paste printer precisely applies solder paste to the PCB pads,then the high-speed surface mount technology (SMT) machines precisely place tiny components at an astonishing speed (Suga’s capability is maximum 128,000 points per hour),at last,the reflow soldering furnace melts the solder paste for soldering through precise temperature control.

PCB assembly equipment in Suga

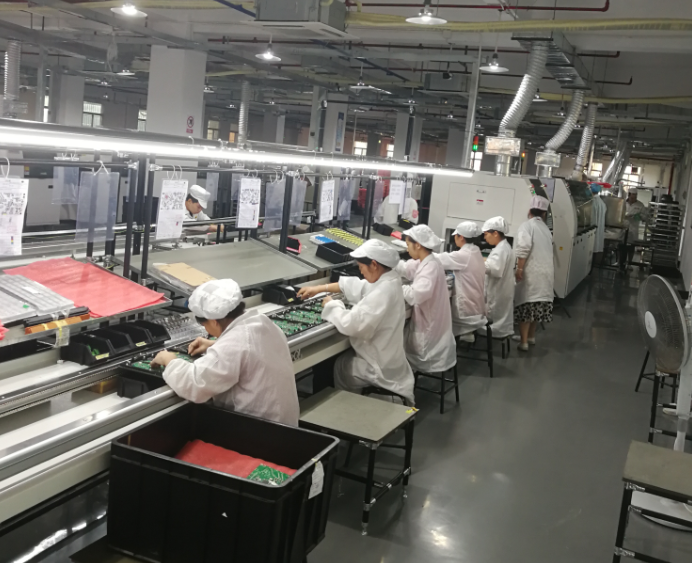

Secondly:DIP core equipment in Suga

We have 8 DIP lines in our Factory.

The working principle of DIP equipment:DIP equipment is mainly used for soldering through-hole components with pins (such as electrolytic capacitors, connectors, transformers, etc.), and is still indispensable in fields such as automotive electronics, industrial control, and power modules

DIP core equipment in Suga

Finally:Quality Guardian equipment in Suga

Suga’s quality equipment is also very complete.

Automatic optical inspection instrument (AOI) can inspect the appearance of solder joints.

Online Tester (ICT) can verify the circuit connectivity

Function Tester (FCT) can ensure the performance of the entire machine

X-ray inspection instrument can see through BGA and other hidden solder joints

Nowadays,Suga PCBA production line through some software connect these equipment,realize material tracking, process control and data analysis.

It is precisely these sophisticated industrial equipment that drive electronic products to enter thousands of households efficiently and reliably, becoming the solid foundation of the digital world

If you have a demand for PCBA, please don’t hesitate. Suga is your best partner

PCB assembly equipment in Suga also can offer you surprises
