we have passed ATF 16949, S09001 and other system certifrcations and can provide hich-guality PCB manufacturing and assemply servicesPCBs are key comonents of varous elctronic systems used in the automotve industy, so automotie PCBs must be carefuly desioned and constructed to ensure they meet pertormanceoals and relevant industy standards PCB types tor automotie electronics are widely used. anaina from fexble cBs rodCB and etc. PCB assemblies are found in a variety of automotive devices and systems, including but not limited to.

• Engine systems: To ensure efficient and safe conditions, they usually use metal cores or rigid-flex PCBs
• Dashboard Communication system: Provides the driver with information about the condition or performance of the vehicle. They usually use fexible multilayer and HD1 PCBs
• Navigation System: Provides location information and directions to the driver They usually use embedded PCBs
• Battery Charging Station: Enables drivers to charge electric vehicles. They usually use PCBs with high curent capacity security Sstems: revent verce theft by rovdin automatc ockin or remote ockna and aertin when Penta theft s detected,They usually use flexible muti aver and -1 PR

Types for Automotive PCBA

Flexible PCBs – These circuit boards are constructed using a flexible plastic base material, typically composed of PEEK, polyamide, or clear polyester film. Their design allows them to be flexed and twisted, making them suitable for installation in curved or tight spaces within vehicles.

Rigid PCBs – Rigid printed circuit boards are produced from fiberglass-reinforced epoxy laminate (FR4) and do not bend. They are commonly used in applications such as display monitors and rearview camera screens.

Rigid-Flex PCBs – This type of board integrates both rigid and flexible sections into a single design. They are often implemented in automotive lighting systems where a combination of structural stability and adaptability is required.

HDI PCBs – High-Density Interconnect boards provide a greater density of wiring per unit area, with finer traces and spacing, along with increased connection pad density. They support the mounting of more components and play a significant role in the miniaturization of electronic devices, widely used in vehicle infotainment systems.

LED PCBs – LED circuit boards are generally made from an aluminum substrate, which aids in effective heat dissipation. They are commonly found in automotive indicator lights, headlights, and brake lights.

CREATING YOUR NEXT AUTOMOTIVE PCB

When you’re ready to launch your next big idea, MCL can help. Our team of automotive engineers and design specialists work closely with customers to develop innovative, high-quality products that meet all the strict standards needed to hit the market.

We help you test, modify, and finalize your component development, plus make any modifications you need for added system support with an advanced prototyping methodology.

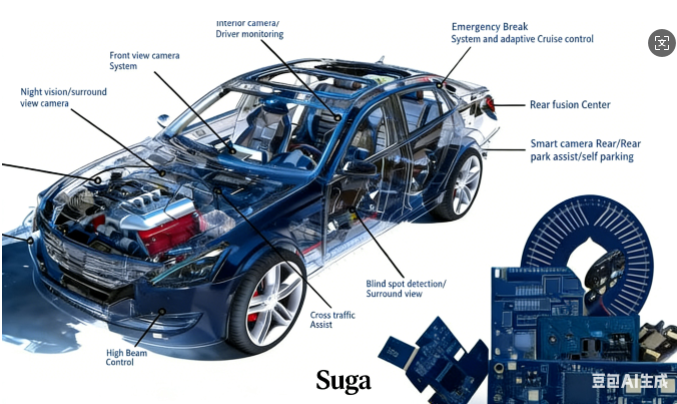

PCB APPLICATIONS IN VEHICLES

The deployment of airbags in vehicles requires the use of printed circuit boards, which are incorporated into the airbag’s deployment rate sensor. This sensor is important because it helps dissipate static electricity, triggering the airbag to deploy when needed.

Car stereo and video display devices make use of printed circuit boards to connect components. These boards are also used in the car’s antilock brake systems, engine coolant level monitors, engine timing systems, LED brake lights, power distribution junction boxes, remote diagnostic systems, security systems, and transmission sensors.

Our services can help you in engineering reliable, mission-critical parts for automotive applications such as:

• Airbag controls
• Anti-lock brake systems
• Anti-theft systems
• Audio-video systems
• Climate control
• Digital displays
• Engine-timing systems
• Ignition systems
• Power steering
• Signals and lamp controls
• Transmission sensors
• Windshield wipers
• More traditional systems like power converters and light management

Read our blog post to learn more about the uses of circuit boards in vehicles.

GETTING IT RIGHT THE FIRST TIME

If you want to be in the next top model, you need to develop a PCB development plan that is tailored to your specific needs and constraints. Our automotive partners can rely on us for complete in-house design services, which means we can save them time and money by eliminating errors and optimizing space. We’ll also test your circuits before production begins so that our customers can get the most out of them.

We are an automotive supplier that works with our customers to create prototypes and large-scale production runs. Our 98% Excellent Quality rating and 99% on-time delivery rate reflect our commitment to quality and efficiency. We will not leave you hanging when it comes to meeting your deadlines, so if you need help choosing a supplier or if you have any questions about what we can offer your business, please contact us!

Don’t put your printed circuit boards in the hands of just anybody! Contact us for expert advice and get a free quote
